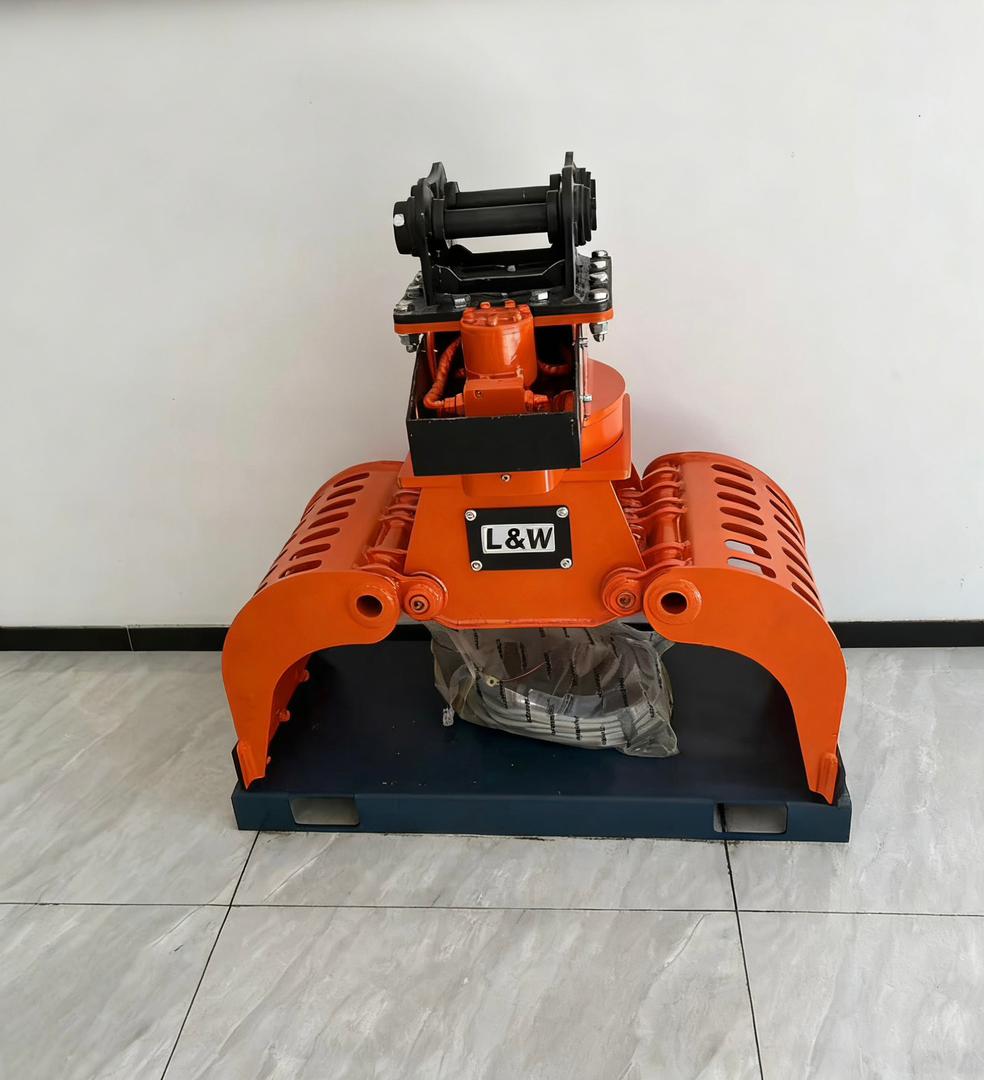

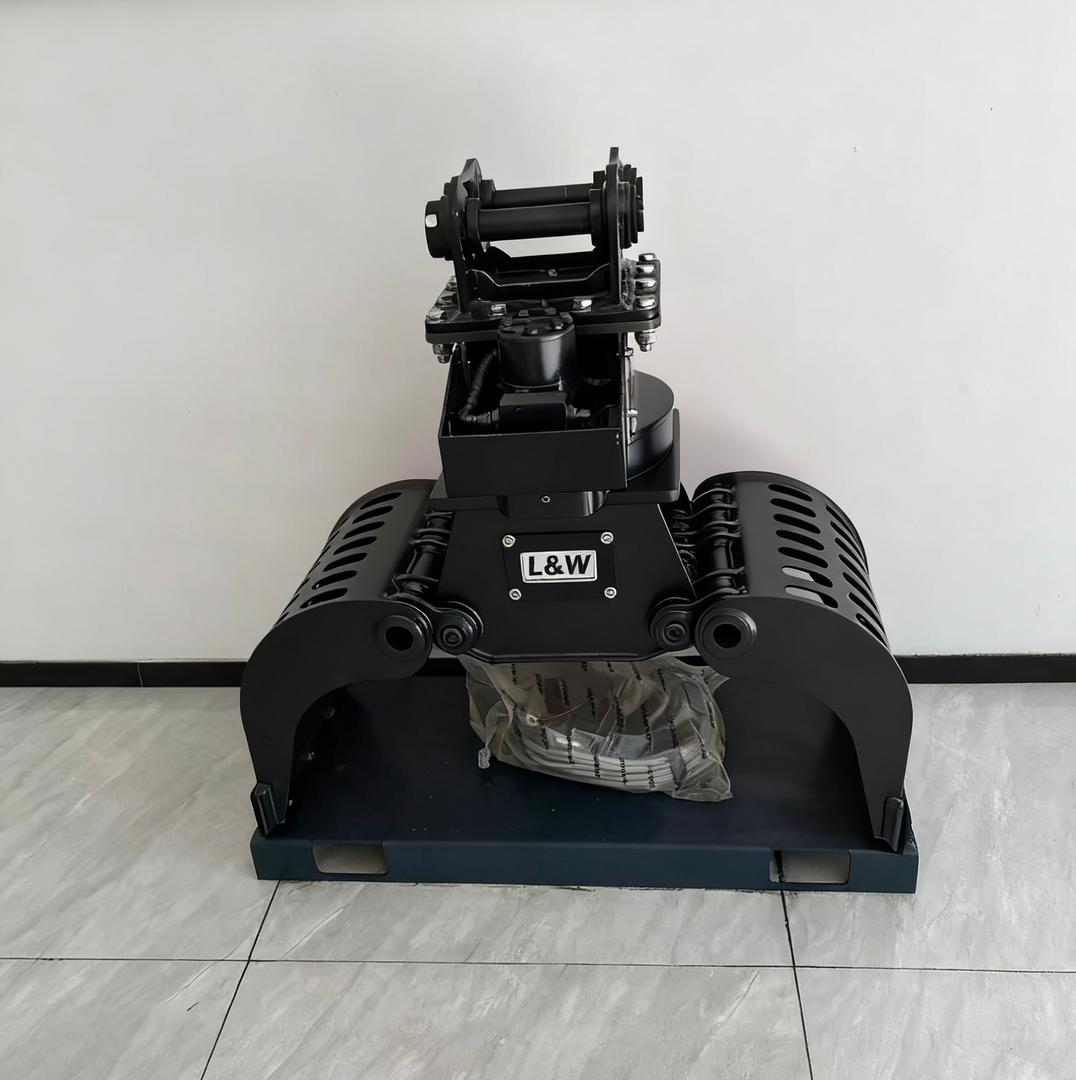

Hydraulic Grapple
Hydraulic Grapple
Couldn't load pickup availability
Designed for sorting and handling all types of solid materials—demolition debris, stone, wood, waste, and more. Because of their interchangeable claws and 360° hydraulic rotation, they are fitted with two hydraulic motors on models from 1,000 kg upward, enabling them to manage heavy loads and irregular shapes.
|
Item/ Model |
Unit |
LW 1400 |
LW 1800 |
LW 2200 |
LW 2300 |
LW 1400B |
LW 1800B |
LW 2200B |
LW 2300B |
|
Suitable Excavator |
ton |
5–9 |
9–16 |
18–26 |
28–35 |
5–9 |
9–16 |
18–26 |
25-35 |
|
Weight |
kg |
530 |
1130 |
1880 |
2410 |
530 |
1130 |
1880 |
2410 |
|
Height A |
mm |
1370 |
1860 |
2130 |
2470 |
1370 |
1860 |
2130 |
2470 |
|
Width B |
mm |
620 |
850 |
1100 |
1380 |
620 |
850 |
1100 |
1380 |
|
Opening C |
mm |
1400 |
1800 |
2200 |
2300 |
1400 |
1800 |
2200 |
2300 |
|
Working Pressure |
bar |
200–240 |
220–260 |
240–280 |
240–280 |
200–240 |
220–260 |
240–280 |
240-280 |
|
Working Flow |
lpm |
100 |
160 |
200–250 |
200–250 |
100 |
160 |
200–250 |
200-250 |
|
Rotation Diameter |
mm |
360 |
593 |
690 |
690 |
360 |
593 |
690 |
690 |
