Electro-hydraulic magnet
A versatile tool, the hydraulic magnet can be fitted to a wide range of carriers. It is designed to sort various materials (metals, iron, scrap, bolts, clinker, slag, rebar, sheet metal, etc.), clean up job-sites, and handle rails and railway sleepers.

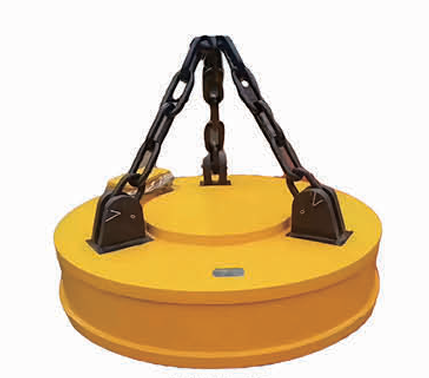

| Self-generated Electricity Magnet | |||||||
| High impact – Simple structure – Refining technology | |||||||
| Model | Suitable Excavator | Weight | Power | Outer Diameter A | Working Flow | Working Pressure | |
| ton | kg | kw | mm | bar | lpm | ||
| LWEL1000 | 12-16 | 1000 | 7 | 1000 | - | - | |
| LWEL1200 | 18-22 | 1820 | 10 | 1200 | - | - | |
| LWEL1300 | 23-26 | 2190 | 11.9 | 1300 | - | - | |
| LWEL1500 | 28-32 | 2990 | 15.6 | 1500 | - | - | |
| LWEL1650 | 32-40 | 3400 | 16.5 | 1650 | - | - | |
| Hydraulic Magnet (without teech) | |||||||
| High impact – Simple structure – Refining technology | |||||||
| Model | Suitable Excavator | Weight | Power | Outer Diameter A | Working Flow | Working Pressure | |
| LWML800 | 12-16 | 870 | 3.9 | 800 | 190 | 90-110 | |
| LWML1000 | 18-24 | 1330 | 7 | 1000 | 210 | 120-160 | |
| LWML1200 | 26-30 | 2080 | 10 | 1200 | 210 | 130-170 | |
| LWML1300 | 30-40 | 2490 | 11.9 | 1300 | 250 | 160-200 | |

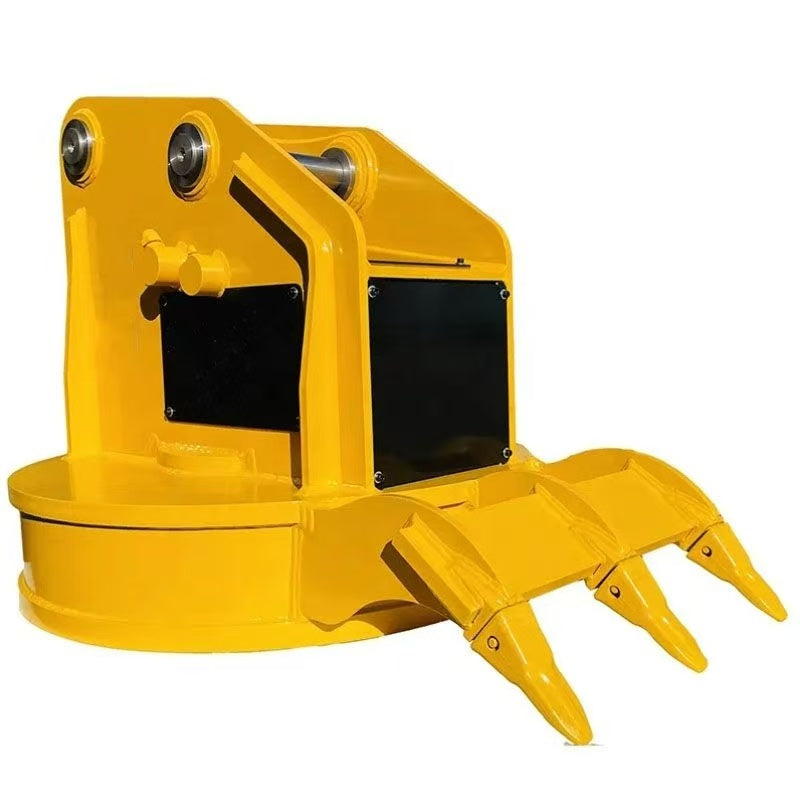

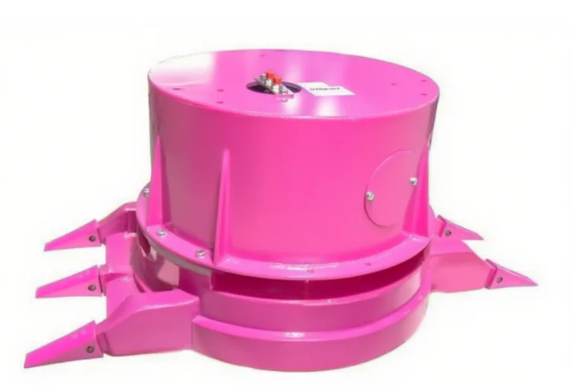

| Hydraulic Magnet (with teech) | |||||||
| High impact – Simple structure – Refining technology | |||||||
| Model | Suitable Excavator | Weight | Power | Outer Diameter A | Working Flow | Working Pressure | |
| LWML800T | 12-16 | 920 | 3.9 | 800 | 190 | 90-110 | |
| LWML1000T | 18-24 | 1460 | 7 | 1000 | 210 | 120-160 | |
| LWML1200T | 26-30 | 2170 | 10 | 1200 | 210 | 130-170 | |
| LWML1300T | 30-40 | 2590 | 11.9 | 1300 | 250 | 160-200 | |
