L&W

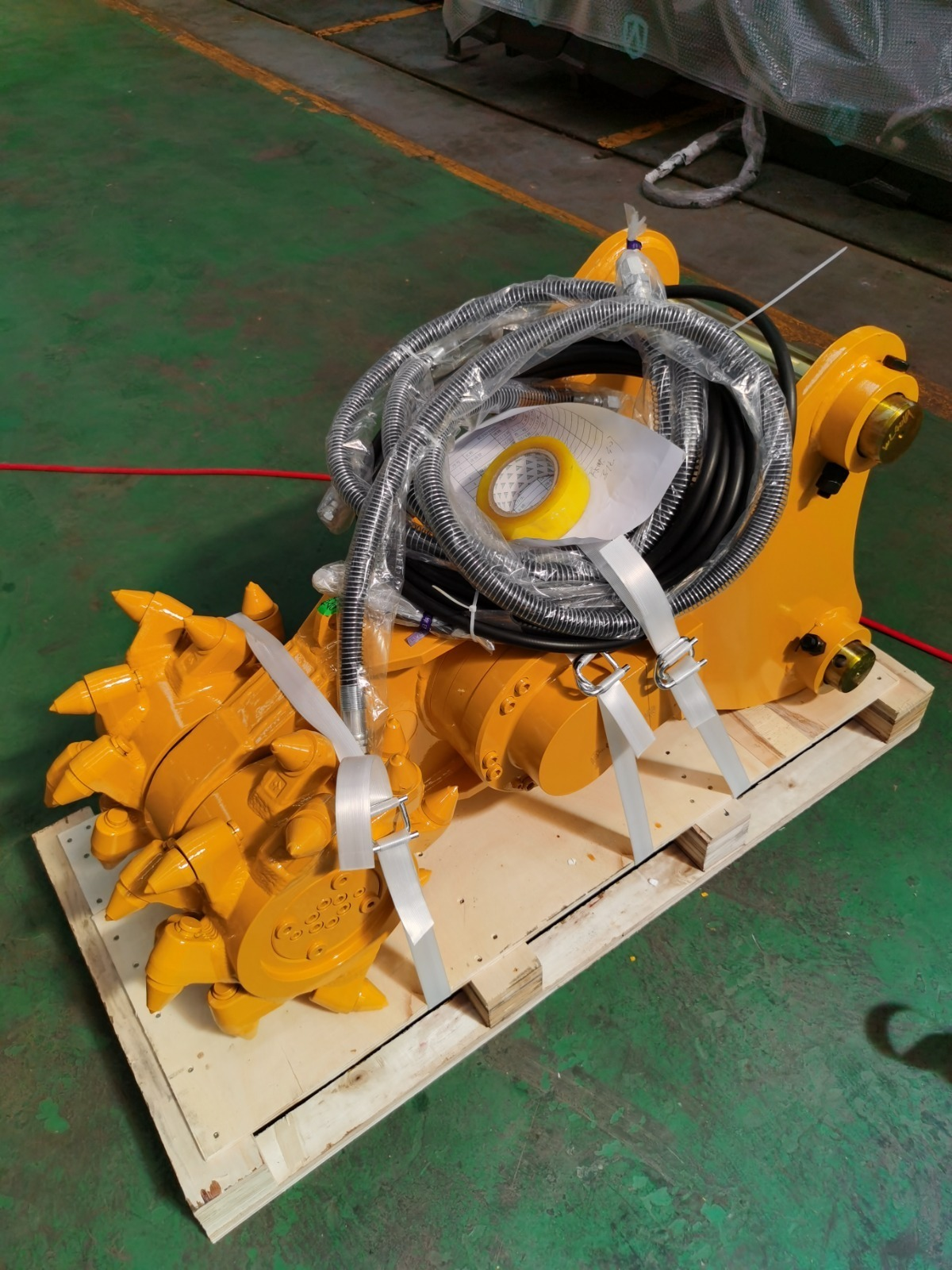

Drum Cutter
Drum Cutter
Regular price
¥0.00 CNY
Regular price
Sale price
¥0.00 CNY
Quantity
Couldn't load pickup availability
Environmentally friendly, versatile and high-performance, they can be used for grinding tree roots and stumps, milling asphalt and concrete, and milling plaster (the side discs allow perfect control of the thickness being removed).
Application:
Suitable for crushing, milling, excavation and levelling work in mines, road surfaces, tunnels, canals, municipal projects, bridges, etc.
Suitable for crushing, milling, excavation and levelling work in mines, road surfaces, tunnels, canals, municipal projects, bridges, etc.
Product Features:
-
Available in two types – longitudinal and transverse milling cutters – for 15–60 ton excavators.
-
Fitted with imported original motor; internal gears made of 42CrMoTi alloy steel.
-
Achieves a milling speed of 25–40 m³/h; capable of cutting concrete without reinforcement or with minimal rebar.
-
Cutting picks manufactured with a special proprietary process.
-
Multi-functional tool integrating excavation, cleaning and milling operations.
|
Model |
Unit |
LW60X |
LW150X |
LW200X |
LW300X |
LW400X |
|
Maximum power |
kW |
40 |
62 |
80 |
80 |
97 |
|
Maximum pressure |
MPa |
25 |
25 |
25 |
25 |
25 |
|
Rated torque |
N·m |
7150 |
7843 |
10500 |
8200 |
15185 |
|
Recommended flow |
L/min |
120 |
140 |
160 |
160 |
240 |
|
Recommended rotate speed |
rpm |
60 (Q=140L) |
60 (Q=140L) |
75 (Q=160L) |
75 (Q=160L) |
70 (Q=240L) |
|
Weight |
kg |
500 |
1100 |
1384 |
1500 |
1700 |
|
Number of Cutting teeth |
PCs |
32 |
40 |
64 |
64 |
68 |
|
Suitable Excavator |
T |
5–10 |
12–19 |
19–26 |
25–35 |
35–42 |
